FS 1303.5 MYTHIC FPV Drone motor
As low as:
$12.90
As low as:
only left for same day shipping. Order now!
FS 1303.5 MYTHIC FPV Drone motor
1.2-4S KV55002.for light 3inch propeller3.for indoor flight aircraft whoop#cinewhoop#tinewhoop#fpvstartekit
About this product
The FS series of MAD FPV brushless motors is specifically designed for freestyle flying. The development process involved six months of rigorous testing, resulting in refined aesthetics and improved functionality. The main difference between the FS and BSC series is the lightweight titanium shaft and the 0.15mm silicon steel sheet, which increases efficiency. Additionally, the product has an aesthetically pleasing appearance due to secondary anodizing.
Motor Data |
|||
| Motor Model | MAD Ultima FS1303.5 V1.0 | Number of pole pairs | 9N12P |
| Motor Size | D:16.5 × 14.1 mm | Rotor Balance | ≤3 mg |
| Propeller Mounting Holes | D:5 M2X4 | Motor Mounting Holes | D:9 M2×4 |
| Shaft Diameter | IN: 1.5 mm | Cable Length | 130 mm 24# Awg(Black) silicone |

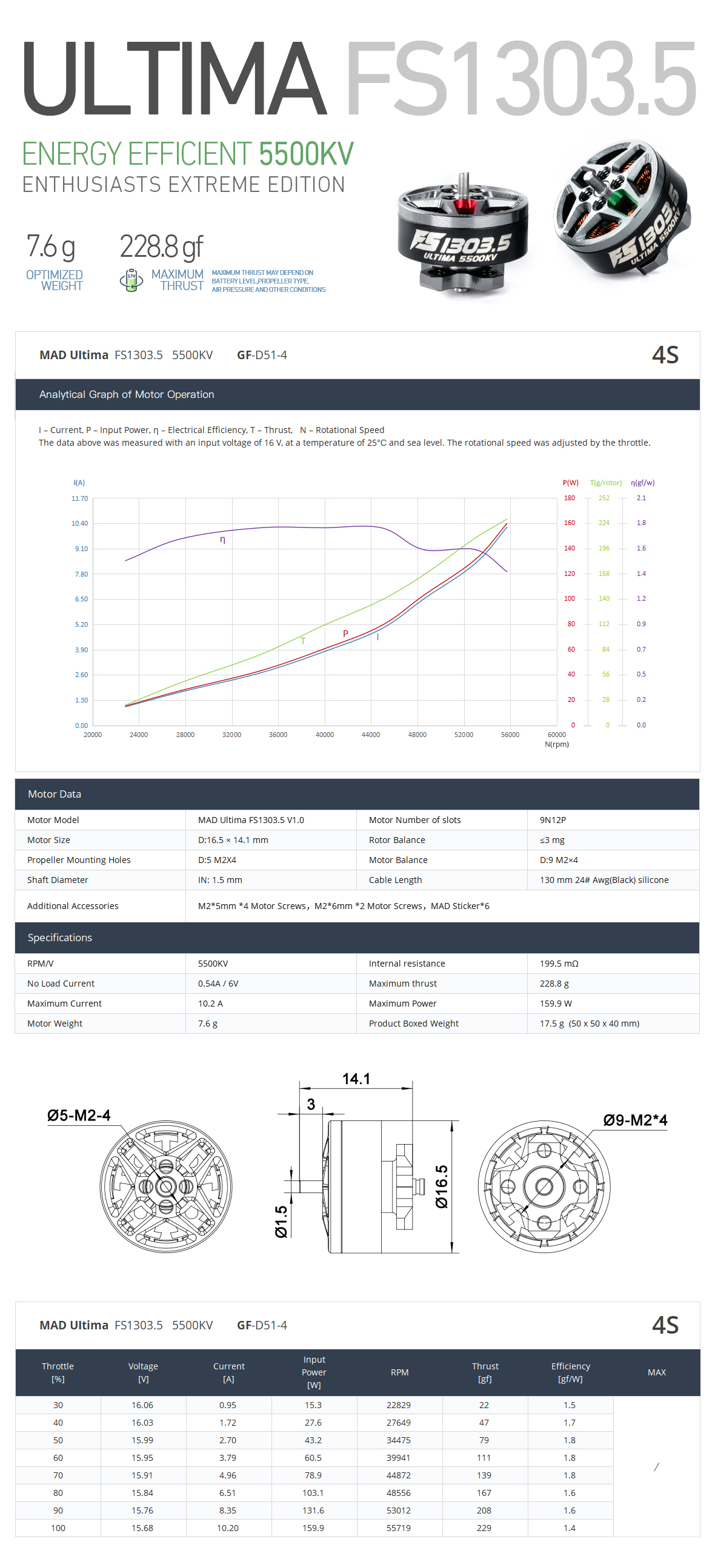

Drawing and mount holes
